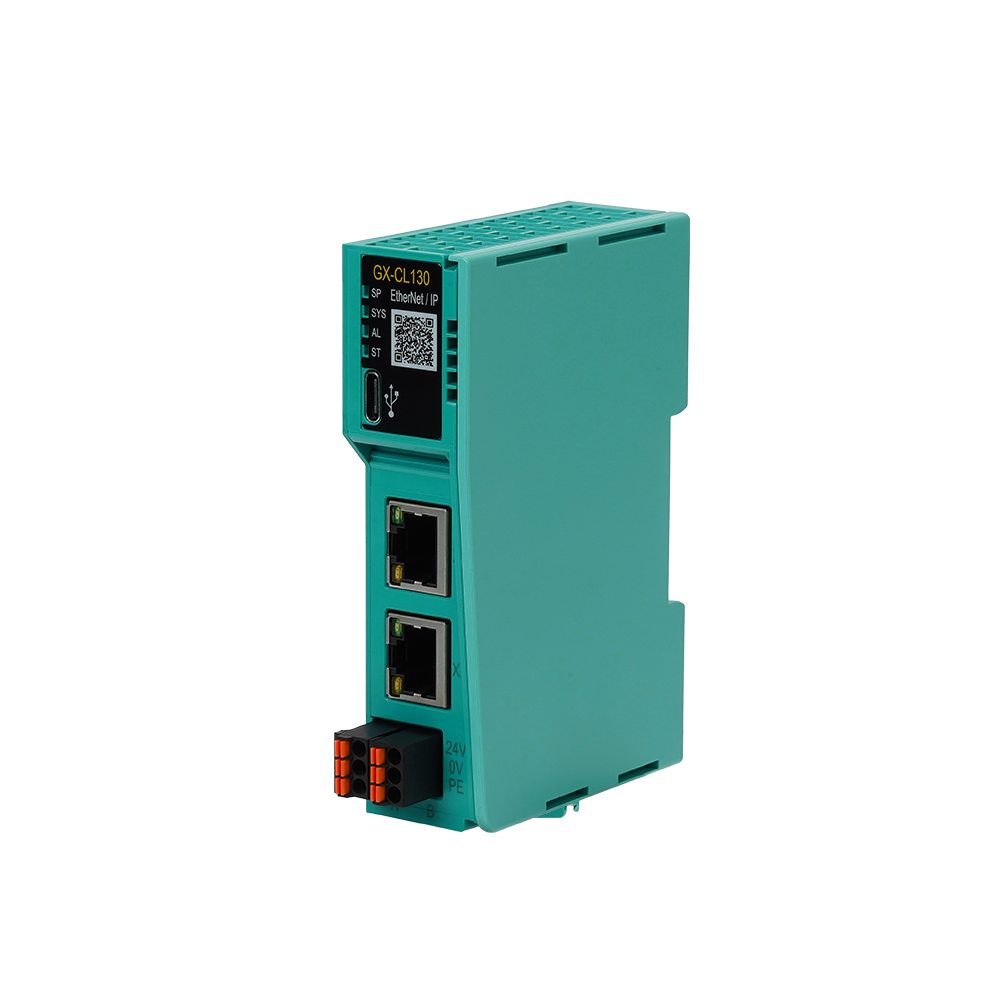

GX-CL130
EtherNet/IP Fieldbus Coupler Module
Compatible with EtherNet/IP protocol.
Reliable anti-interference ability; wide temperature range.
Stable and Real-time.
watchdog monitoring.
Toolless installation on DIN Rail, secure clamping without loosening.
Push-in wiring, plug-in terminal block.
Gold-plated design, efficient conduction, and resistant to salt spray corrosion.
Detail Information
Technical Specifications
-
Module TypeCoupler Module
-
System Voltage Supply24VDC(-15%~+20%)
-
System Current ConsumptionMax. 100 mA
-
Max. Expansion Module32slots
-
Max. Input Data Length504 bytes
-
Max. Output Data Length496 bytes
-
Protective CircuitOvervoltage Protection / Undervoltage Protection / Overcurrent Protection
-
Connection MethodPush-in connection
-
Isolation Methodtransformer isolation
-
IndicatorsPower Status : Green；System Status : Green/Red；Alarm Status : Green/Red；Communication Status : Green/Red
Communication Specifications
-
ProtocolEtherNet/IP
-
Interface Connector/InterfaceRJ-45
-
Interface Port Number2
-
Transmission Speed10/100 Mbps
General Specifications
-
Dimensions (W*D*H)25 x 105 x 69mm
-
Weight80g
-
Operating Temperature-10 … +60 °C
-
Storage Temperature-25 … +85 °C
-
Permissible Humidity(Non-condensing)RH 95%
-
Altitude Limit< 2000 m
-
Ingress Protection (IP)IP 20
-
Pollution SeverityII
-
Product CertificationCE
-
Wire Range (IEC / UL)0.2mm² ...1.5mm² (AWG 24...16)
-
Suggested TerminalsDN00510D / DN00710D
