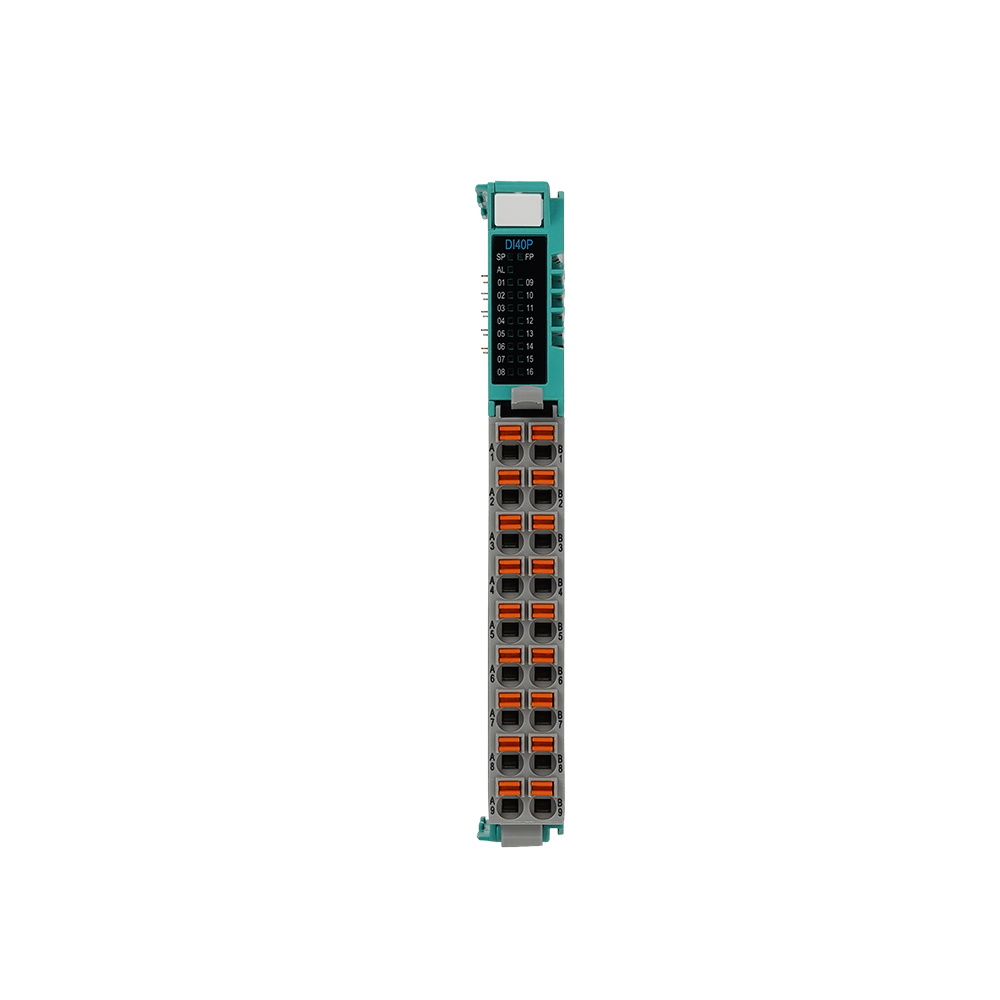

GX-DI40P
16-Channel Digital Input Module,SOURCE
16-channel isolated digital inputs, SOURCE type.
Noise reduction.
Watchdog monitoring, DIN rail mounting, pluggable terminal blocks.
Toolless installation and wiring.
Module replaced without disconnecting wires.
Detail Information
Technical Specifications
-
Module TypeDigital Input Module
-
Field Voltage Supply24 VDC (-15%~+20%)
-
Field Current ConsumptionMax. 51mA@24VDC
-
System Voltage Supply5 VDC; via power jumper contacts
-
System Current ConsumptionMax. 60mA@5VDC
-
Input Current per Channel for Signal2.4mA
-
Input TypeSOURCE
-
Number of Inputs16
-
Input Voltage Range for Signal (0)0 VDC…10 VDC
-
Input Voltage Range for Signal (1)15 VDC...30 VDC
-
Input Signal TypeSOURCE
-
Connection MethodPush-in connection
-
Input Filter Time3ms
-
Isolation MethodPhotocoupler Isolation
-
Indicators16 Green / Input Status；Power Status : Green；System Status : Green；Alarm Status : Red
General Specifications
-
Dimensions (W*D*H)12 x 105 x 69mm
-
Weight62 g
-
Operating Temperature-10 … 60 °C
-
Storage Temperature-25…+85 ˚C
-
Permissible Humidity(Non-condensing)RH 95%
-
Altitude Limit< 2000 m
-
Ingress Protection (IP)IP20
-
Pollution SeverityII
-
Product CertificationCE
-
Wire Range (IEC / UL)0.2mm² … 1.5mm²(AWG 24...16)
-
Suggested TerminalsDN00510D / DN00710D
