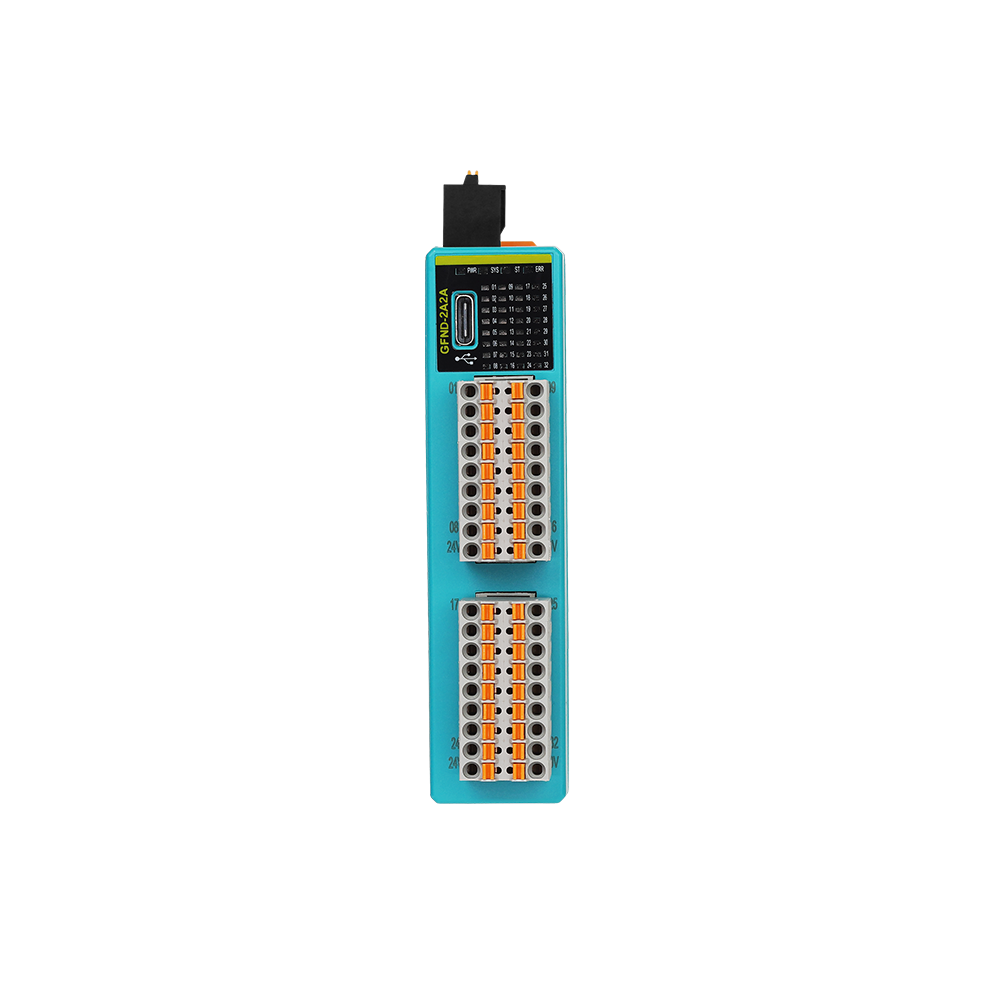

GFND-2A2A
PROFINET Integrated IO
PROFINET.
32-Channel Digital Input,SOURCE
Quick Configuration.Space saving.
Detachable terminal blocks for time-saving.
Integrated indicator for easy identification.
2x RJ45 for expansion.
Detail Information
Technical Specifications
-
System Voltage Supply24 VDC (-15%~+20%)
-
Current DrawMax. 110mA@24VDC
-
Input / Output Signal TypeSource
-
Number of Inputs32
-
Input Voltage Range for Signal (0)0 VDC…10 VDC
-
Input Voltage Range for Signal (1)15VDC…30 VDC
-
Protective CircuitOvervoltage Protection / Undervoltage Protection / Overcurrent Protection
-
Connection MethodPush-in connection
-
Isolation MethodDigital Isolator
-
Indicators32 Green / Input Status; Power Status : Green; System Status : Green; Alarm Status : Green/Red; Communication Status : Green/Red
-
Number Port2
Communication Specifications
-
ProtocolPROFINET
General Specifications
-
Dimensions (W*D*H)25 x 116 x 85 mm
-
Weight150 g
-
Operating Temperature-10 … 60 °C
-
Storage Temperature-25…+85˚C
-
Permissible Humidity(Non-condensing)RH 95%
-
Altitude Limit< 2000 m
-
Ingress Protection (IP)IP 20
-
Pollution SeverityII
-
Safety ApprovalCE
-
Wire Range (IEC / UL)0.2 mm² ~ 1.5 mm² / AWG 24~16
