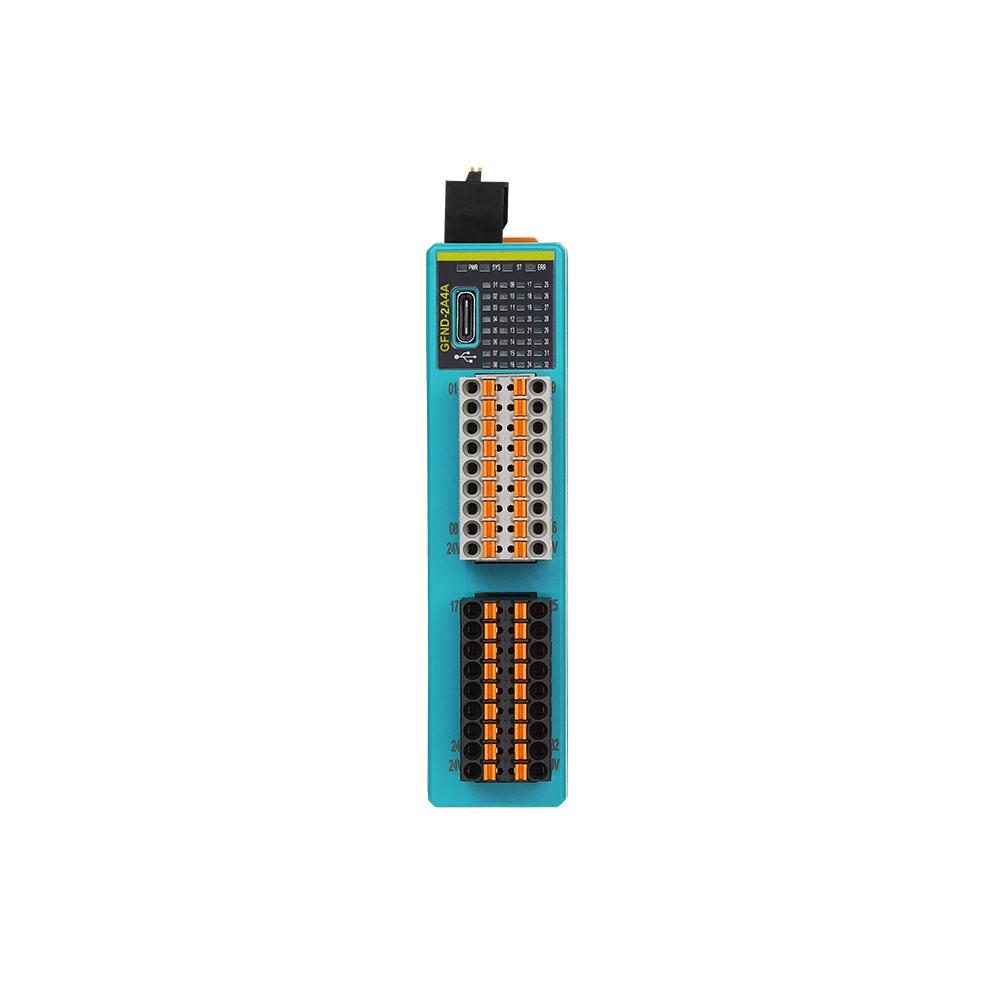

GFND-2A4A

PROFINET Integrated IO

PROFINET.
16-Channel Digital Input/Output,SOURCE
Quick Configuration.Space saving.
Detachable terminal blocks for time-saving.
Integrated indicator for easy identification.
2x RJ45 for expansion.

Detail Information

Technical Specifications
  • System Voltage Supply
    24 VDC (-15%~+20%)
  • Current Draw
    Max. 180mA@24VDC
  • Number of Inputs/Outputs
    16
  • Input / Output Signal Type
    Source
  • Input Voltage Range for Signal (0)
    0 VDC…10 VDC
  • Input Voltage Range for Signal (1)
    15VDC…30 VDC
  • Load Specification
    Ohmic load/ inductive load / lamp load
  • Protective Circuit
    Overvoltage Protection / Undervoltage Protection / Overcurrent Protection
  • Max. Output Current In Single Channel
    0.5 A
  • Connection Method
    Push-in connection
  • Isolation Method
    Digital Isolator
  • Indicators
    16 Green / Input Status / Output Status; Power Status : Green; System Status : Green; Alarm Status : Green/Red; Communication Status : Green/Red
  • Number Port
    2
Communication Specifications
  • Protocol
    PROFINET
General Specifications
  • Dimensions (W*D*H)
    25 x 116 x 85 mm
  • Weight
    150 g
  • Operating Temperature
    -10 … 60 °C
  • Storage Temperature
    -25…+85˚C
  • Permissible Humidity(Non-condensing)
    RH 95%
  • Altitude Limit
    < 2000 m
  • Ingress Protection (IP)
    IP 20
  • Pollution Severity
    II
  • Safety Approval
    CE
  • Wire Range (IEC / UL)
    0.2 mm² ~ 1.5 mm² / AWG 24~16
