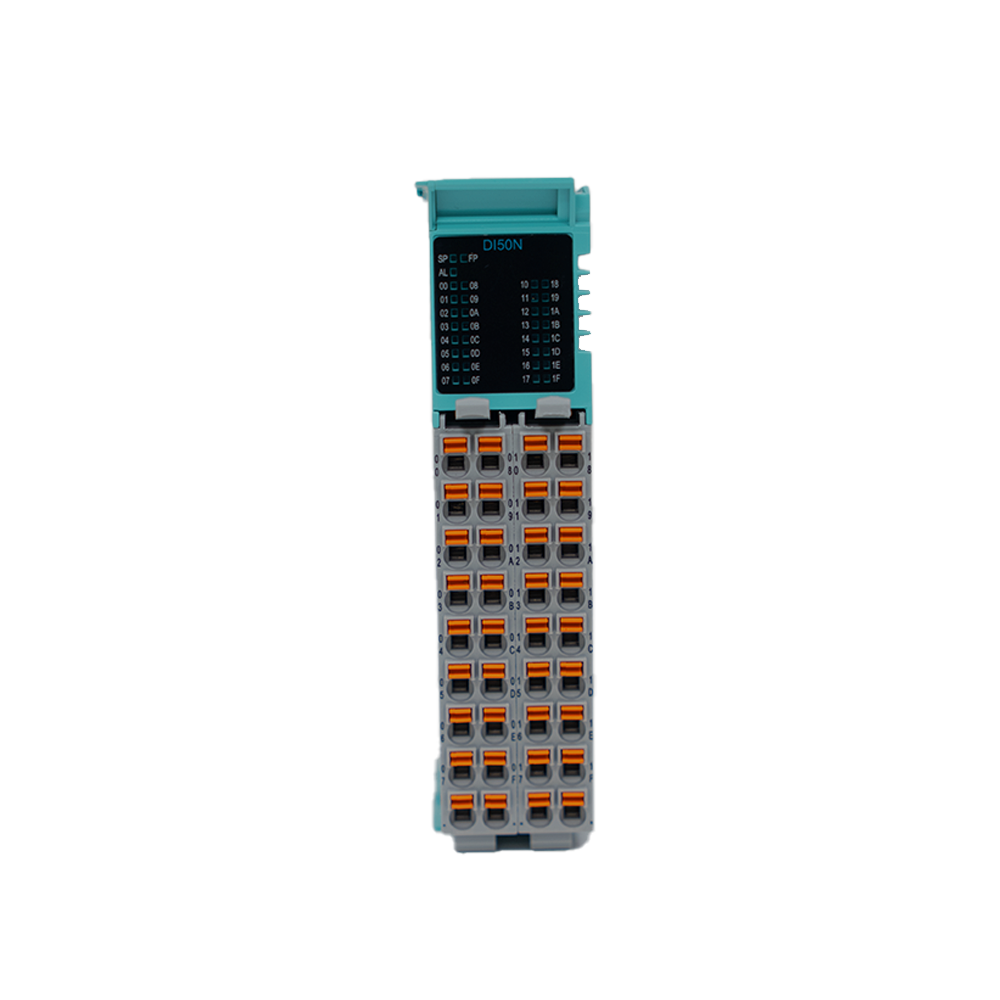

GX-DI50N
32-Channel Digital Input Module,SINK
32-channel digital input module with SINK input design for high-density signal acquisition.
Optical isolation and input filtering help reduce noise caused by mechanical switching.
Watchdog monitoring support helps improve system reliability.
DIN rail mounting, push-in wiring, and pluggable terminals simplify installation without tools.
No additional power supply is required, and module replacement can be completed without removing field wiring.
Detail Information
Technical Specifications
-
Module Type32-Channel Digital Input Module
-
Field Voltage Supply24 VDC (-15%~+20%)
-
Field Current ConsumptionMax. 65mA@24VDC
-
System Voltage Supply5 VDC; via power jumper contacts
-
System Current ConsumptionMax. 150mA@5VDC
-
Input Current per Channel for Signal2.4mA
-
Input TypeSINK
-
Number of Inputs32
-
Input Voltage Range for Signal (0)15VDC…30 VDC
-
Input Voltage Range for Signal (1)0 VDC...10 VDC
-
Input Signal TypeSINK
-
Connection MethodPush-in connection
-
Isolation MethodPhotocoupler Isolation
-
Indicators32 Green / Input Status；Power Status : Green；System Status : Green；Alarm Status : Red
General Specifications
-
Dimensions (W*D*H)24 x 105 x 69mm
-
Weight80g
-
Operating Temperature-10 … +60 °C
-
Storage Temperature-25 … +85 °C
-
Permissible Humidity(Non-condensing)RH 95%
-
Altitude Limit< 2000 m
-
Ingress Protection (IP)IP 20
-
Pollution SeverityII
-
Product CertificationUL / CE
-
Wire Range (IEC / UL)0.2mm² … 1.5mm²(AWG 24...16)
-
Suggested TerminalsDN00510D / DN00710D
