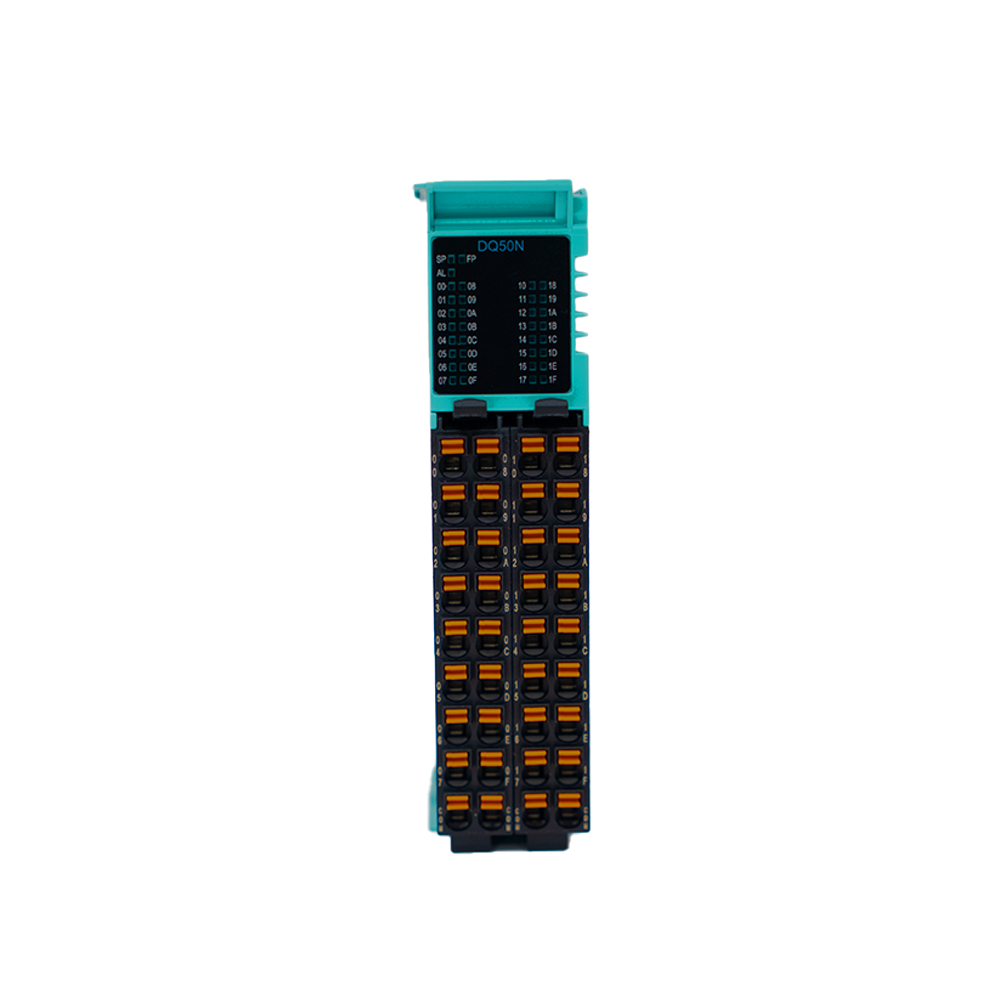

GX-DQ50N
32-Channel Digital Output Module,SINK
32-channel isolated outputs, SINK type.
ESD and surge protection; overvoltage protection; isolation withstand voltage of 500VDC.
Watchdog monitoring, independent LED diagnostic indicators, compatible with labeling.
Large aperture ; Toolless installation and wiring.
resistant to salt spray corrosion.
Detail Information
Technical Specifications
-
Module Type32-Channel Digital Output Module
-
Field Voltage Supply24 VDC (-15%~+20%)
-
Field Current ConsumptionMax. 5mA@24VDC
-
System Voltage Supply5 VDC; via power jumper contacts
-
System Current ConsumptionMax. 170mA@5VDC
-
Number of Output32
-
Load SpecificationResistive, inductive, lamp load
-
Protective Circuitundervoltage protection / overvoltage protection
-
Max. Output Current In Single Channel0.5A
-
Connection MethodPush-in connection
-
Isolation MethodPhotocoupler Isolation
-
Indicators32 Green / Input Status；Power Status : Green；System Status : Green；Alarm Status : Red
-
Output TypeSINK
General Specifications
-
Dimensions (W*D*H)24 x 105 x 69mm
-
Weight107g
-
Operating Temperature-10 … 60 °C
-
Storage Temperature-25…+85 ˚C
-
Permissible Humidity(Non-condensing)RH 95%
-
Altitude Limit< 2000 m
-
Ingress Protection (IP)IP20
-
Pollution SeverityII
-
Product CertificationUL / CE
-
Wire Range (IEC / UL)0.2mm² … 1.5mm²(AWG 24...16)
-
Suggested TerminalsDN00510D / DN00710D
